Conveyors & Assembly Systems
Our systems are designed to integrate seamlessly with your woodworking machinery.
Our Connect Conveyor Systems and Modular Assembly Stations
Can be configured for manual, semi‑automated, or fully automated assembly operations, with features tailored to fit your specific process.

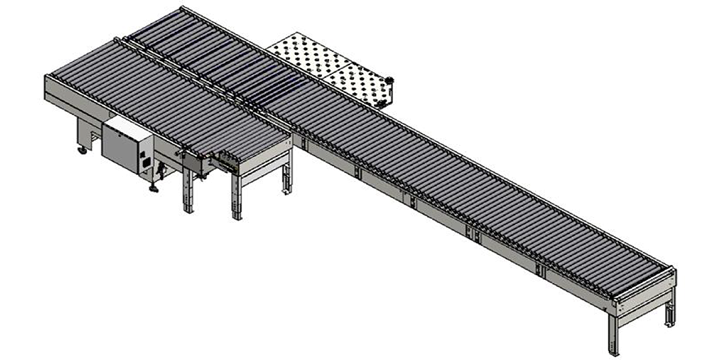

Return Conveyor
Edgebander, Sanding, Grooving, Finishing
- Manufactured in-house to the highest standard, it is a powerful and versatile solution to cabinet-making woes.
- Four modules: Panel Kicker, Panel Rotator, Panel Support Rollers, Panel Exit Assist
- Configurations: 900/1200/1500

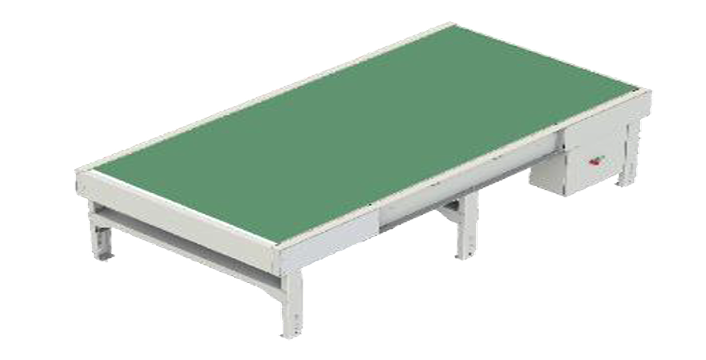

Conveyors

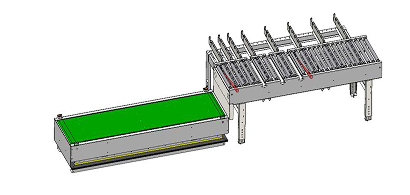

Storage and Sequencing System
- We designed for straight or cross-transfer applications. Straight transfer moves materials along a linear path, whereas cross-transfer moves items at a 90-degree angle across the main flow.
- Suitable for either application: Belt Conveyor, Chain-Driven Live Roller (CDLR) Conveyor, and Roller Conveyor.
- Each system can be configured to handle either linear or cross-flow material movement, depending on the specific needs.
Assembly Stations

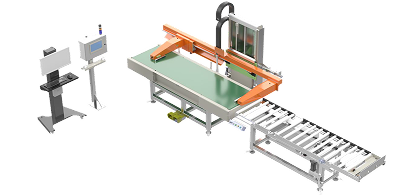

Door and Cabinet Assembly Station
- Power-assisted assembly stations support assembly configured for cabinets or doors, and pre-hung doors, while improving ergonomics and productivity.
- Our three systems are backed by over 20 years of experience.
- Controlled lifting, positioning and rotating.
Panel Kicker
Panel Rotator
Panel Support Rollers
Panel Exit Assist
Configurations
Max panel Size (Feeding longest side only)
Max panel Size (Feeding 4 sides with panel rotator)
Min Panel Size (With Panel Kicker)
Min Panel Size (With Panel exit assist)
900 / 3'
52″ x 52″
52″ x 96″
32″ x 72″
3″ x 8″
3″ x 6″
1200 / 4'
64″ x 64″
64″ x 120″
44″ x 96″
3″ x 8″
3″ x 6″
Power-assisted assembly stations support assembly configured for cabinets or doors, and pre-hung doors, while improving ergonomics and productivity. Our three systems are backed by over 20 years of experience.

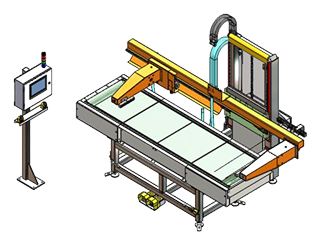

Cabinet Assembly Station
- Ready for direct integration into your processes.
- Designed with a motorized conveyor and lift system that stages, assembles, and transfers heavy cabinet components and tall doors 72”–96”.
- 10”–30” lift range, supporting up to 350 lbs.
Door Assembly Station
- The station features a servo‑driven vertical lift system with a 0” to 30” lift range handling loads of up to 350 lbs Using a flat belt conveyor.
- Accommodates a door height range of 72” to 96”, making it suitable for door, glass and glass frame assembly.

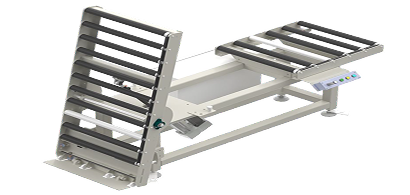

Tilt Station
- Designed to safely tilt doors weighing up to 300 lbs.
- Designed for door sizes up to 96” x 48”.
- System operates on a 480V or 600V, 3-phase, 60 Hz, 10A power supply.
Our Aim Is To Understand Your Processes and Constraints
Beginning with an assessment of opportunities to increase throughput, we tailor systems for CNC machines, edge banders, routers, tenoners, sanders, drill/dowel units, machining centers, and sanding and spraying workstations. Our services include building, testing, and installing automation solutions, as well as providing on-site training and support.
